The original material- cellulose of the mat slice is a kind of very traditional material, however, compared with the traditional agitation craft, the ECONOSTO/ HOFLANDDELTAFLEX produced without the asbestos mat slice to strengthen the density of the mat slice biggest the light machine of the research usage, the this present life produces the craft in guaranteeing the economic function and the foundation of the production cost, the concept conversion that make the traditional" economy" mat slice become the high performance of high-quality product, improved the spirit function of the product especially and biggest( Novus& reg; 34<0.1 mls/ min).

No asbestosplank material under the steam environment of usage:



Steam, because of the influence of the water solution, is themost difficult to seal completely of lie one of the qualities, need the careful processing.Say for the saturated steam, its pressure and temperature is look like in the direct proportion of relation, the temperature is more high, the pressure is more big.Still choose the mat slice of seal completely the steam system from the relation of the pressure only not enough, following factor also must in consideration of:



※ The thickness of the mat slice



※ The form surface of the method processes the neat degree of accuracy



※ A surface of mat of should dint



※ Assemble craft etc.



The following form descends a few different thicknesses for the steam environment of without the asbestos plankmaterial mat slice bear of tallest temperature, be provided for customer to choose a reference:



MODEL
0.75mm
1.5mm
3.0mm
Novus 30
230℃
200℃
120℃
Novus 34
280℃
250℃
180℃
Novus -ACID
180℃
150℃
120℃


Econgraph® Sheet materials




A plank of the graphite sheetmaterial conduct and actions seals completely the new technique product in the realm to get the extensive application more and more, what to need to be explain is, we after here the graphite material point mean the inflation processing of graphite, is to mix with the natural graphite and particular chemistry material, through the particular craft of the extremely high processing, then chase separate a chemistry material after of a form graphite compress plank material.

The graphite that inflates the empress have as follows for seal completely the count for much characteristic of technique:

※ Bear the heat

※ The temperature scope（－200℃——550℃）

※ Excellent anti- chemistry function

※ Not aging

※ Good compression function

※ Resist the hot impact

※ Transmit heat is good



Uniflon® PTFE  Sheet materials




Uniflon® PTFE Sheet materials


Uniflon&reg is the PTFE of the new generation to seal completely the material, having the good anti- chemistry to decay the function and sealing completely the function outstandingly, have as follows characteristics:


※ The excellent anti- chemistry decays the function



※ Through improvement of excellent anti- Worm change the function



※ Several near zero leak( Uniflon& reg; 53 Airtight <0.01 mls/ min)



※ Meet the FDA 21 CFR177.1500 norm request that the American food and drugs manage



※ Compare to apply the temperature scope widely::-210℃--+260℃



※ Lower should the dint can immediately guarantee to seal completely the function excellently

※ Environmental protection product



※ Easily incise to process, install etc.



※ Not flammable, antibiotic



※ A biggest diameter of a mat can amount to 2 meters

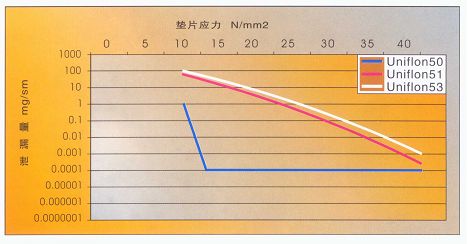

Uniflon® PTFE mat slice should dint and leak the quantity of curve form:







Uniflon® Application：



Because of the special anti-chemistry function of the Uniflon& reg, past is strong to decay to lie the quality to seal completely the material ideally.At the same time, almost for zero leak of seal completely the function also

Insure to the environment of pollution decline lowest.

Make use of the realm: petroleum chemical engineering, make the professions, such as medicine and food etc..
